Benefits of polyurethane foam
Unique aluminium grease filters are enhanced with a special polyurethane foam that eliminates up to 98% of all grease particles and other impurities. At the same time, the hood maintains its absorption efficiency.
Shiny and fingerprint-free finish
All stainless steel surfaces are coated with a special TouchFree film that prevents fingerprint markings, leaving the surface always shiny and making cleaning much easier.
.png)

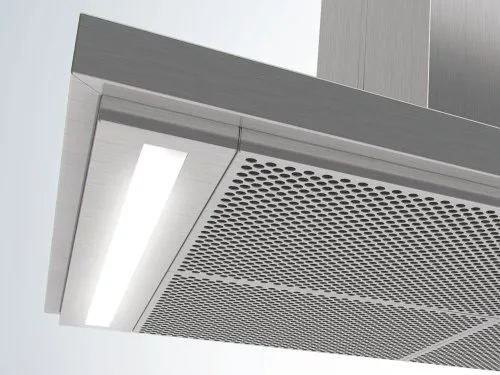

See what you're cooking
LED lighting provides excellent and highly efficient illumination of the cooking hob and represents an important aesthetic and functional element in the kitchen. Its useful life is thirty times as long as that of conventional light bulbs, and it saves up to ten times as much power.
See what you're cooking
LED lighting provides excellent and highly efficient illumination of the cooking hob and represents an important aesthetic and functional element in the kitchen. Its useful life is thirty times as long as that of conventional light bulbs, and it saves up to ten times as much power.
Energy class
C
Venting tube diameter
15 cm
Colour of housing/chimney
stainless steel
Lightning efficiency class
A
Material of housing/chimney
stainless steel and varnished metal
Fluid dynamic efficiency class
B
Grease filtering efficiency class
A
Maximum extraction rate by extraction operation
647 m³/h
Maximum extraction rate by recirculation operation
499 m³/h
Lamp type
LED
Control setting
Button control
Power of lights
6 W
Number of lights
2
Number of speed positions
3
Air flow by extraction version, step 1
250 m³/h
Air flow by extraction version, step 2
433 m³/h
Air flow by extraction version, step 3
647 m³/h
Height
310 mm
EAN code
3838942136900
Motor type
Capacitor motor
Net weight
14.2 kg
Gross weight
16.2 kg
Product code
565735
Connected load
246 W
Filter material
Washable aluminium with polyurethane foam
Max. noise level
68 dB(A)re 1 pW
Number of motors
1
Number of filters
4
Dimensions (W×H×D)
90 × 31 × 30.5 cm
No return airflow flap
150 mm
Nominal current of fuse
10 amp
Annual energy consumption
66.4 kWh
Dimensions of packed product (W×H×D)
100 × 37 × 37 cm
Coal filter code (optional as separate purchase)
530121
