Energy class
B

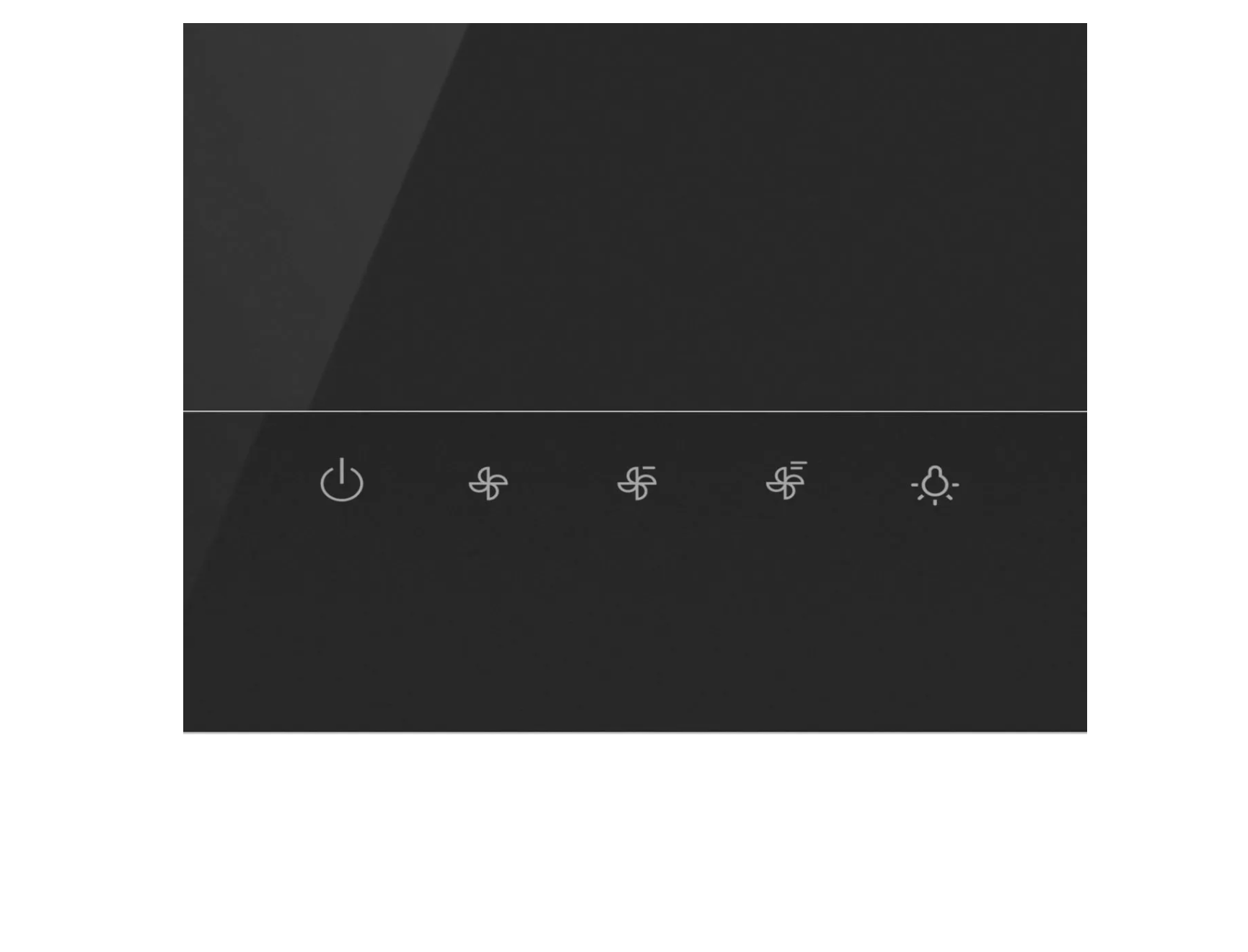

Control setting
Touch control
Venting tube diameter
15 cm
Colour of housing/chimney
black / black
Number of speed positions
3
Lightning efficiency class
A
Material of housing/chimney
Painted steel/glass / varnished steel
Fluid dynamic efficiency class
B
Grease filtering efficiency class
C
Air flow by extraction version, step 1
367 m³/h
Air flow by extraction version, step 2
447 m³/h
Air flow by extraction version, step 3
608 m³/h
Maximum extraction rate by extraction operation
608 m³/h
Maximum extraction rate by recirculation operation
374 m³/h
Lamp type
Led strip
Filter material
Washable aluminium with polyurethane foam
Power of lights
3 W
Number of lights
1
Number of motors
1
Number of filters
1
No return airflow flap
150 mm
Recirculation set number
735631
Number of charcoal filters
2
Coal filter code (optional as separate purchase)
808996
Height
380 mm
EAN code
3838782389511
Net weight
12.7 kg
Gross weight
16.04 kg
Product code
735473
Connected load
183 W
Max. noise level
63 dB(A)re 1 pW
Dimensions (W×H×D)
60 × 38 × 33.5 cm
Nominal current of fuse
10 amp
Annual energy consumption
59.2 kWh
Max. height of the chimney
705 mm
Min. height of the chimney
575 mm
Power consumption in standby mode
0.63 W
Dimensions of packed product (W×H×D)
66 × 54.5 × 39.5 cm
